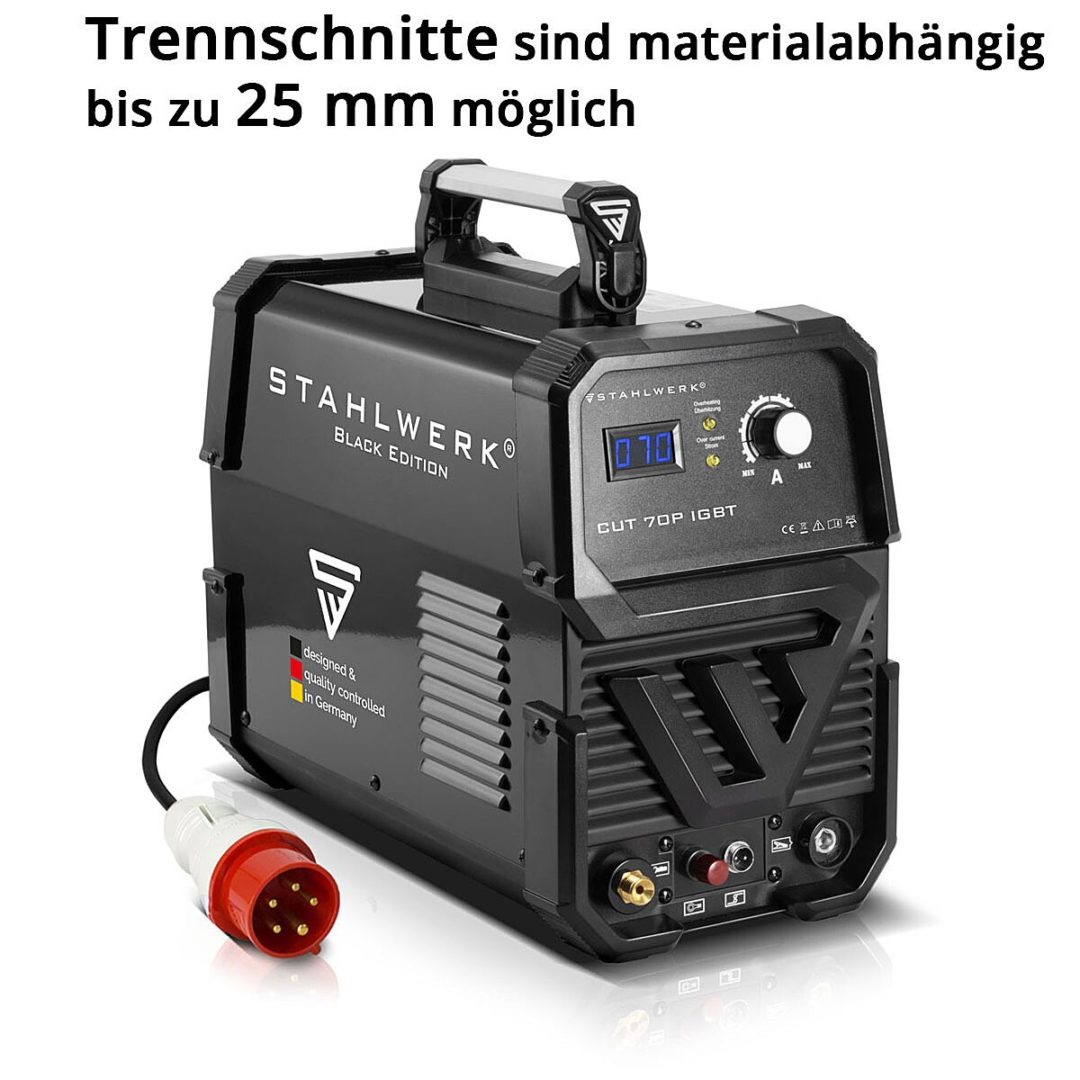

STAHLWERK CUT 70 P Plasma Cutter with 70 amp pilot ignition up to 25 mm cutting capacity suitable for flash rust

Device features & benefits
IGBT technology – The latest and most modern transistor technology enables high performance when welding! No transformer, no MOSFET, the most modern IGBT!
Lightweight & compact design – Weighing just 11.4 kg and measuring 460 x 230 x 365 mm, the device is ideal for cutting work anywhere. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carrying!
Highest efficiency & performance – Three-phase alternating current (400 V) supplies the device and allows an output power of real 70 amps.

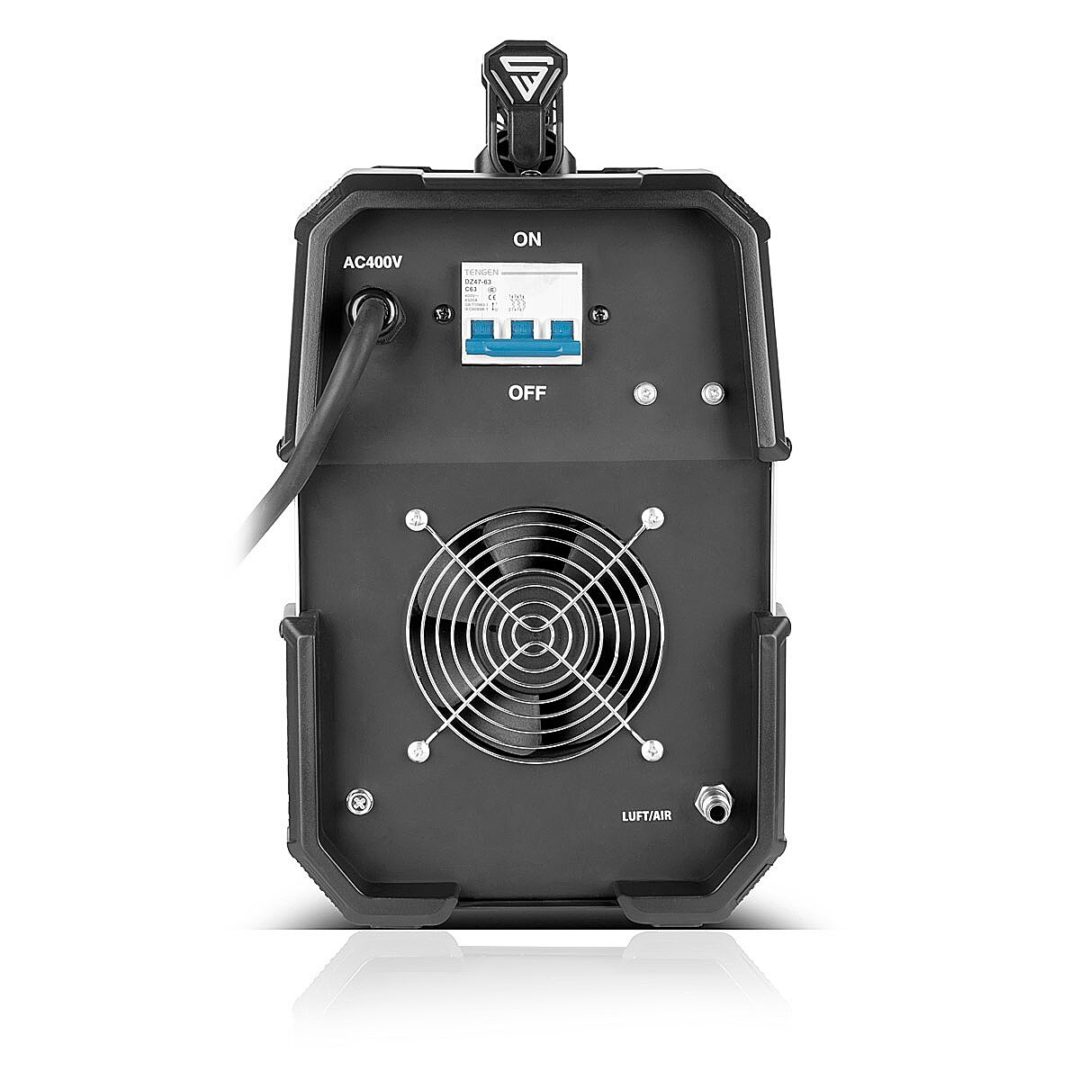

Smart cooling & overheating protection – State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum performance.

Output current 20-70A Protection class IP21S Mains voltage 400 V AC (+- 15%) / 3 Ph Grid frequency 50/60Hz Maximum mains current (I 1max ) 13.8A Maximum effective mains current (I 1eff ) 5.3A Weight 11.4kg Dimensions L x W x H (mm) 460x230x365 Mains connection CEE16 plug Air pressure 4 – 6 bars Air flow min. 140 L / min Standards IEC 60974-1; EN 60974-10 (Class A)
