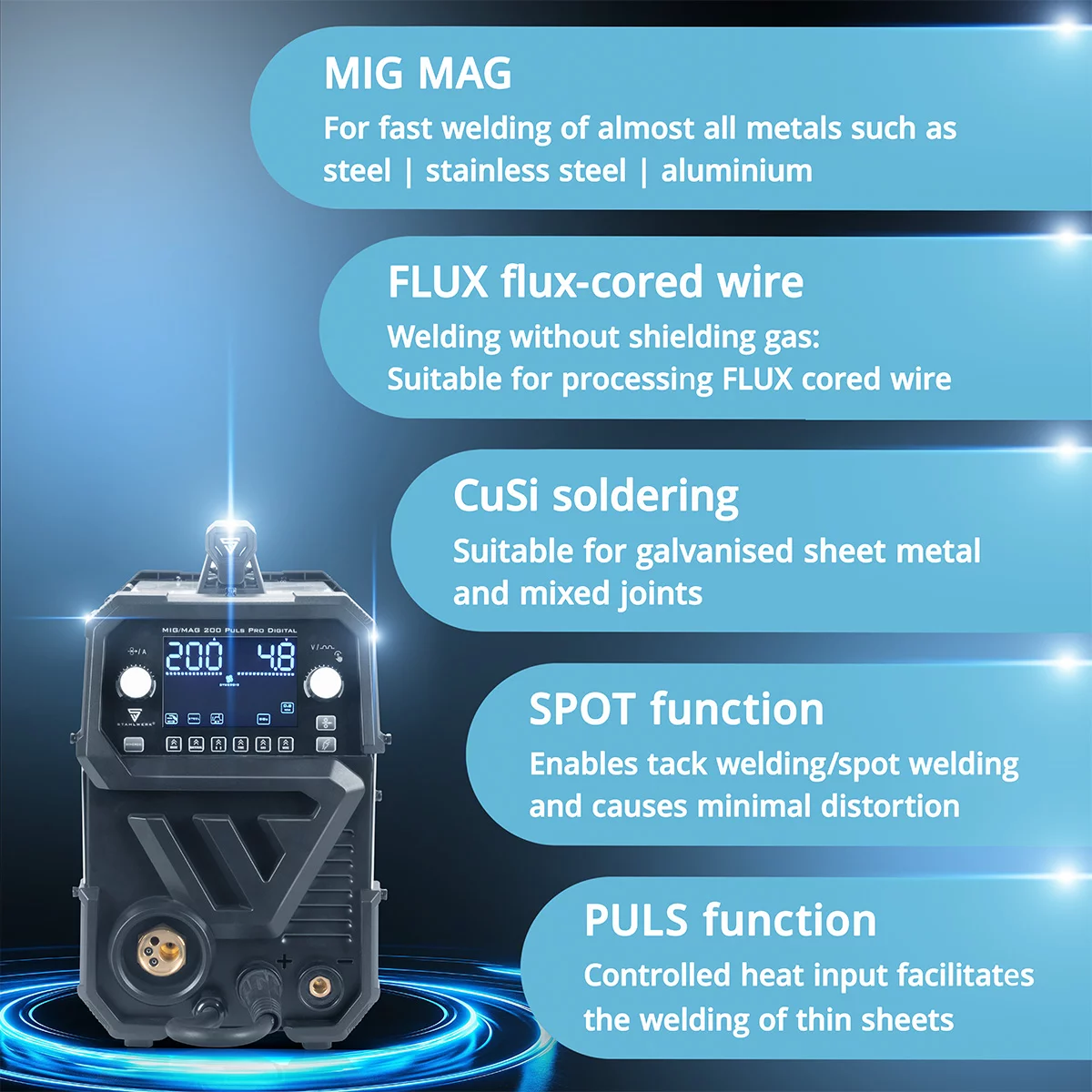

Stahlwerk MIG MAG 200 Pulse Pro Mig Welder -Great Aluminum Mig Welder

IGBT technology: The latest and most modern transistor technology enables maximum performance and a high duty cycle (ED)! No transformer, no MOSFET, state-of-the-art IGBT!
Preflow / gas preflow: Thanks to the gas preflow, the shielding gas flow starts before the arc is ignited. This prevents the workpiece from coming into contact with air at the start of welding. This protects the weld seam from oxidation. The gas lead time can be set individually depending on the welding requirements.

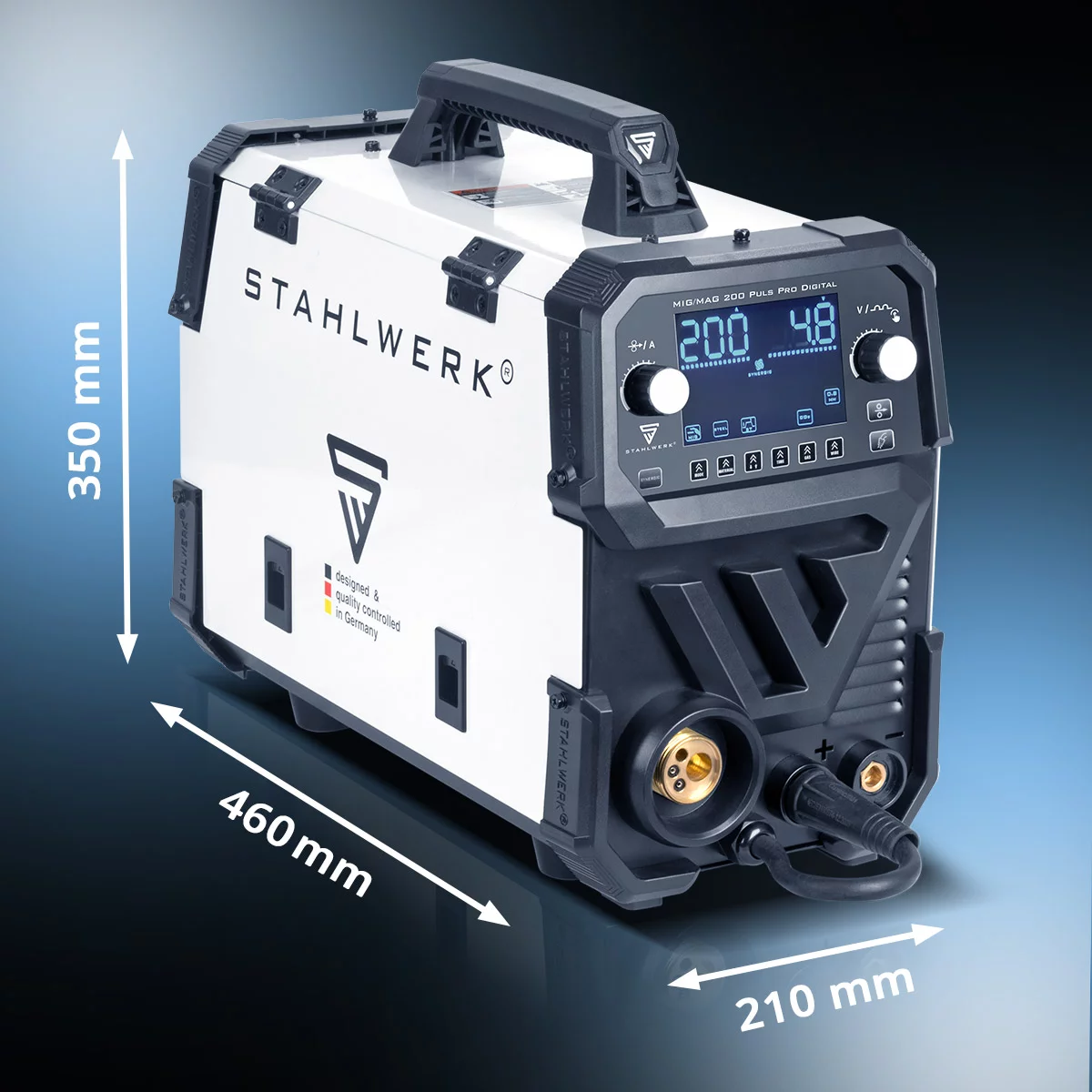

Lightweight & compact design: Only 10.6 kg weight and dimensions of 470 x 210 x 350 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carrying!
Highest efficiency & performance: Single-phase alternating current (230 V) supplies the welding machine and allows an output power of real 200 amps.

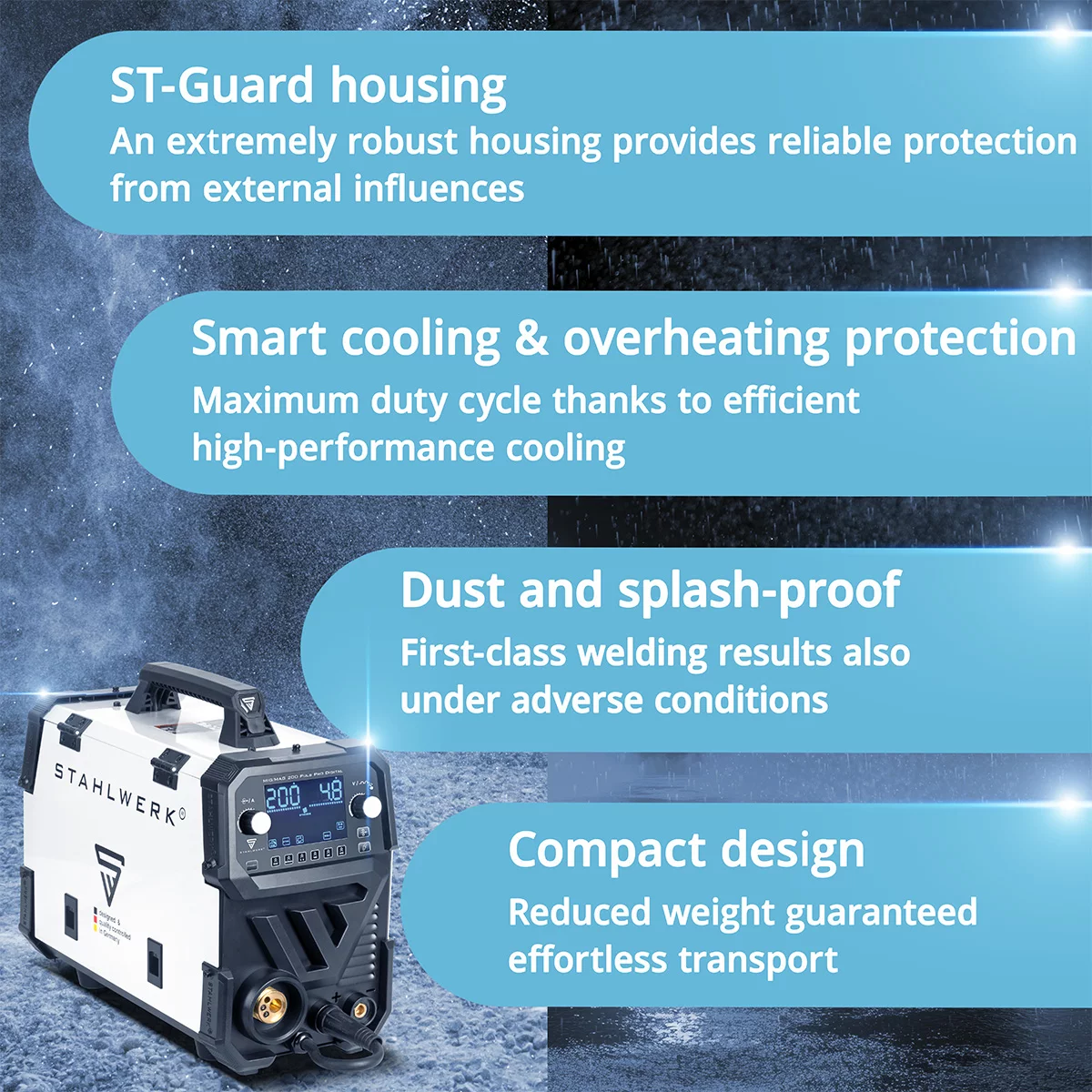

Smart cooling & overheating protection: State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum power to be called up.
4-roller drive: Reliable and powerful wire feed. Thanks to 4 drive rollers, even thicker wires are fed continuously and safely.
Digital display: The set welding parameters can be easily read on a clear digital display. The various modes can be set quickly using the intuitive menu.

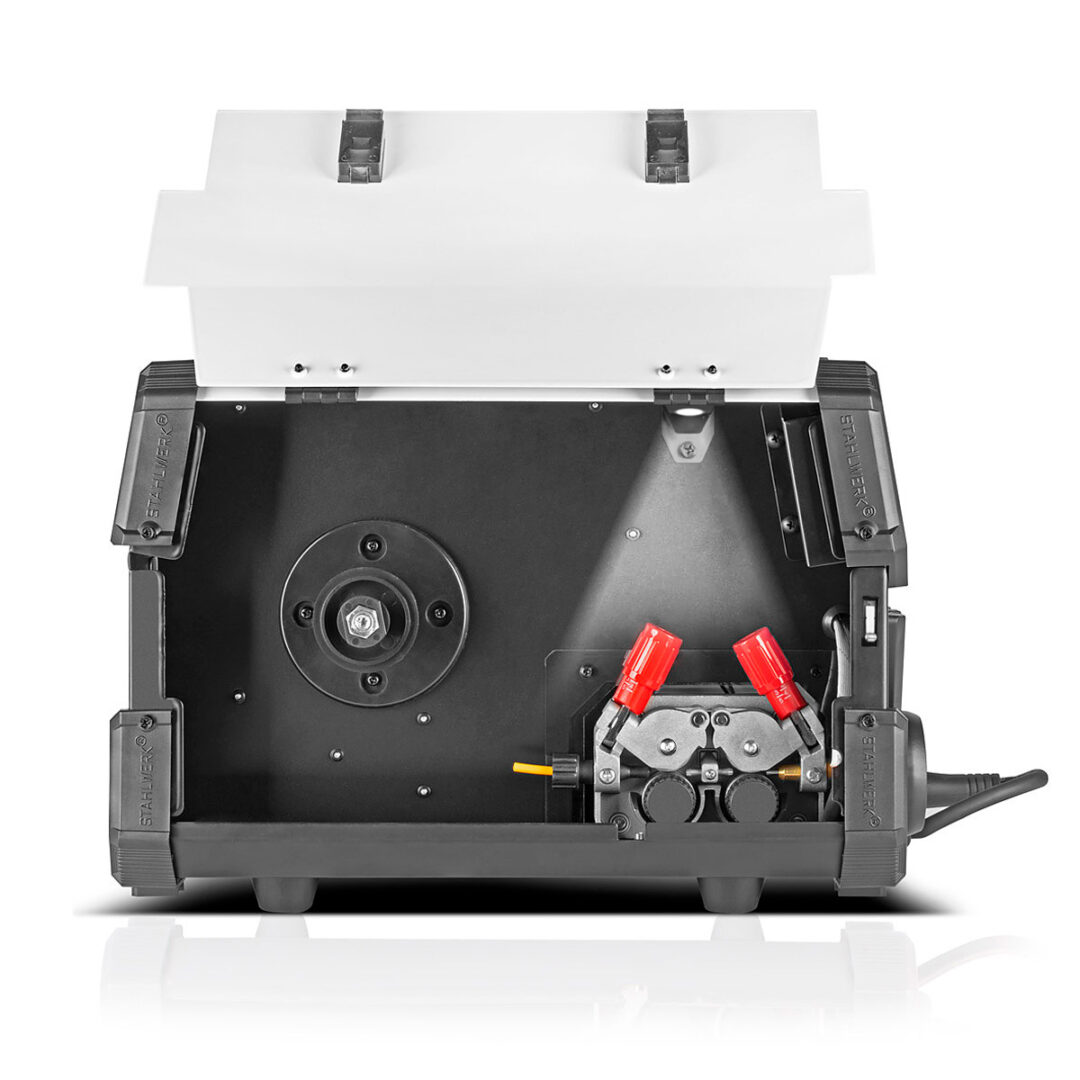

LED lighting: As a special highlight, the welding machine has an integrated LED light to illuminate the wire guide, which enables the wire reel to be changed quickly even in poor visibility conditions. This is switched on automatically when the protective flap is opened.

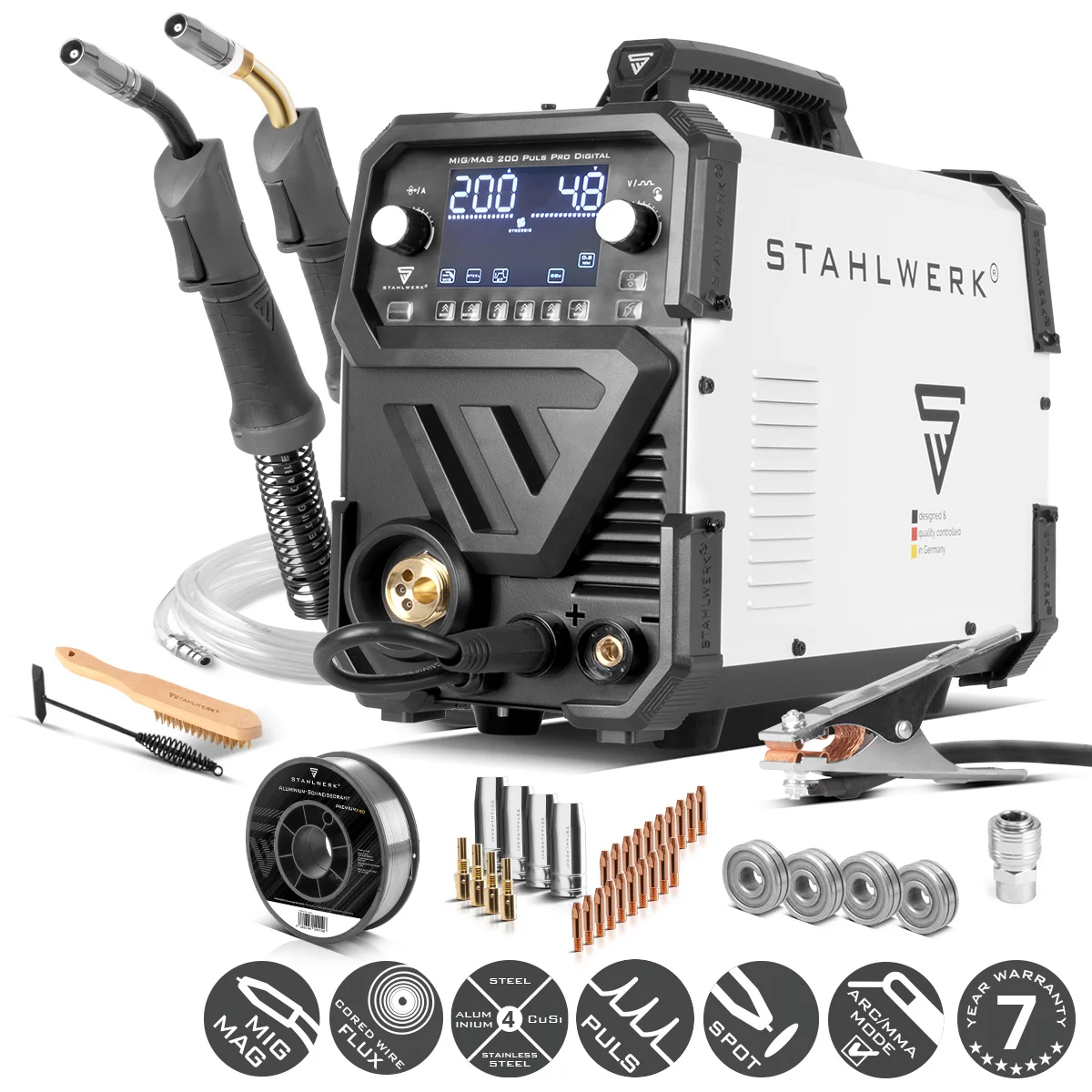

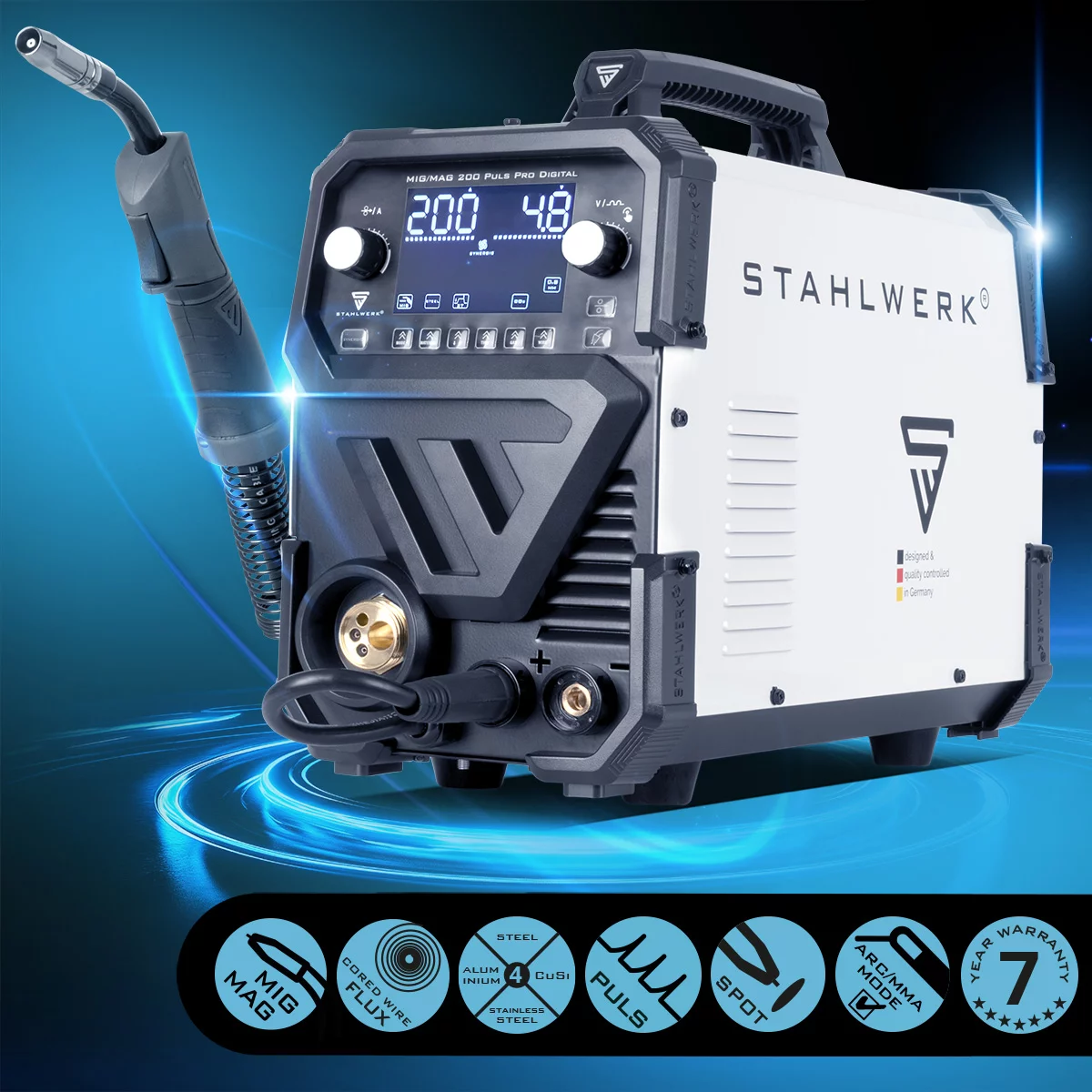

Stahlwerk MIG MAG 200 Pulse Pro

Output current MIG / Lift-TIG / MMA: 20 – 200 A Duty cycle (40°C) MIG / Lift-TIG / MMA: 15% at 200 A / 100% at 77.5 A Protection class: IP21S Mains voltage: 1 x 230 V AC (+-15%) Mains frequency: 50/60 Hz Maximum mains current (I1max) MIG / LIFT-TIG / MMA: 32 A / 25 A / 38 A Maximum effective mains current (I1eff) MIG / LIFT-TIG / MMA: 12.4 A / 9.7 A / 14.7 A
