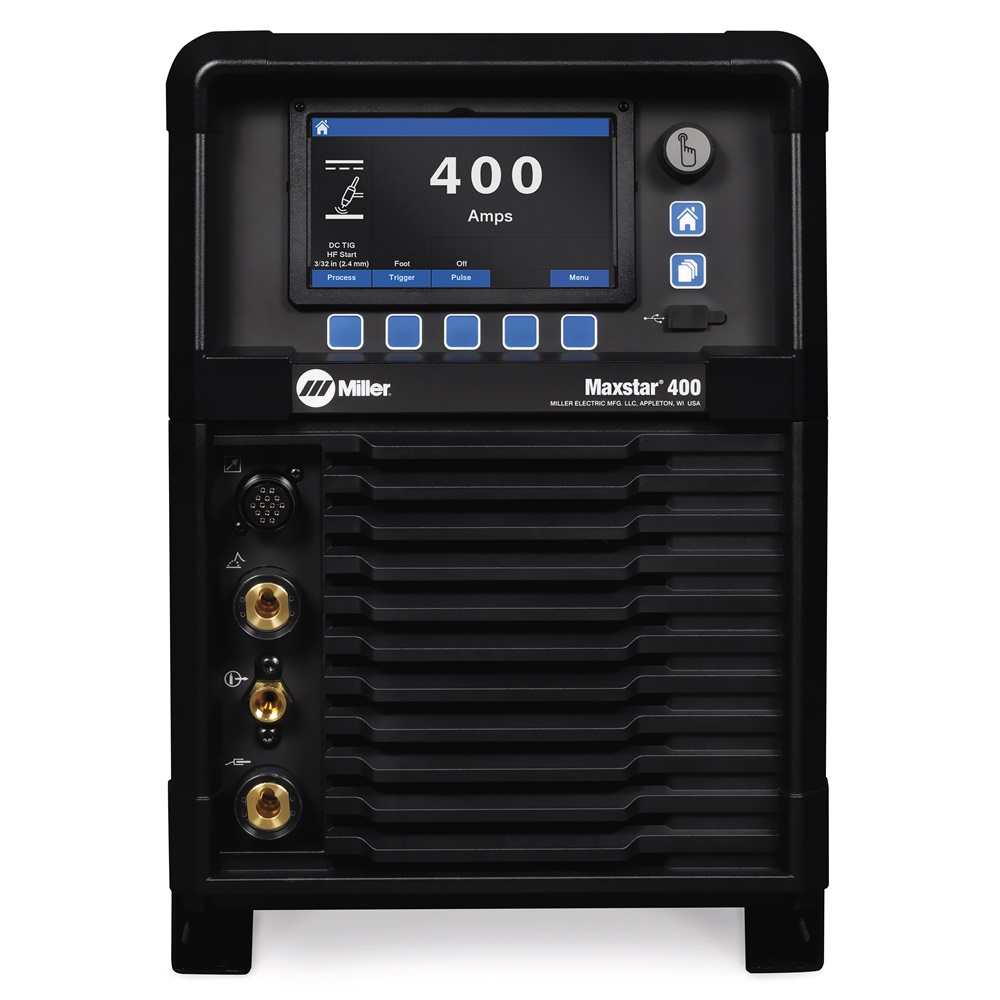

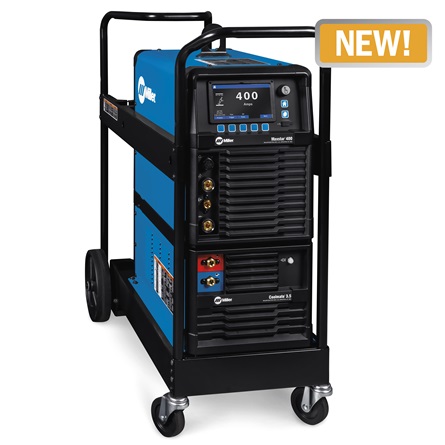

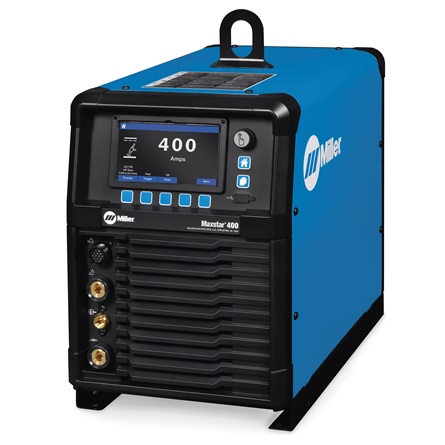

Miller Maxstar 400 DC TIG Welder Water Cooled Package – New Version

DC TIG Welding

Direct Current (DC) TIG welding is the most commonly used type for TIG welding, particularly suitable for ferrous metals like steel, stainless steel, and copper. In DC welding, the current flows in a constant direction. When using DC TIG welding, the electrode can be set in either Direct Current Electrode Positive (DCEP) or Direct Current Electrode Negative (DCEN). However, DCEN is predominantly used in TIG welding.

With DCEN, the current flows from the electrode to the workpiece, concentrating the heat on the workpiece. This arrangement produces deep penetration in the weld, making it highly effective for thicker materials. DC TIG welding creates a stable arc, with little to no spatter, allowing for precision and smooth, visually appealing welds. DC welding also provides excellent control over the heat input, enabling welders to work with thin materials without burning through. Given its stable arc and precise control, DC TIG welding is widely used in industries where high-quality welds are essential, such as aerospace and automotive manufacturing.

However, DC TIG welding has limitations, particularly in its inability to weld non-ferrous metals like aluminum and magnesium effectively. These metals form an oxide layer when exposed to air, which must be cleaned to ensure a strong bond. DC welding lacks the inherent cleaning action needed to break up this oxide layer, leading to a weaker or contaminated weld.

AC/DC TIG Welding

AC/DC TIG welding machines offer the flexibility of switching between Alternating Current (AC) and Direct Current (DC), expanding the range of materials that can be welded. Alternating Current is especially effective for non-ferrous metals such as aluminum and magnesium, making AC/DC TIG welders valuable in applications requiring a variety of materials. In AC welding, the current alternates between positive and negative, allowing for both heating and cleaning in one cycle.

The positive half of the AC cycle, or the DCEP phase, provides a cleaning action by breaking up the oxide layer on the metal surface. This is particularly important when working with aluminum, as it ensures that the weld pool bonds well to the base material. During the negative half of the cycle (DCEN phase), the heat is focused on the workpiece, allowing for deep penetration similar to DC welding. This alternating cycle creates a balance between cleaning and heating, which is essential for clean, high-quality welds on non-ferrous metals.

Many AC/DC TIG machines also allow the welder to adjust the balance between the positive and negative cycles, which is known as “AC balance control.” By controlling the duration of the cleaning and penetration phases, welders can optimize their settings to match the requirements of the material and thickness they are working with. This level of control is ideal for complex projects and ensures that weld quality is maximized.

Key Differences and Considerations

1. Material Compatibility: DC TIG welding is primarily used for ferrous metals like steel and copper, whereas AC/DC TIG welding can handle a broader range of materials, including aluminum and magnesium, which require the cleaning action provided by AC.
2. Arc Stability and Precision: DC TIG welding offers a highly stable arc with minimal spatter, making it suitable for precise work on thin materials. AC welding is less stable by nature due to the alternating current, but advancements in inverter technology have improved its stability.
3. Equipment Complexity and Cost: AC/DC TIG machines are generally more complex and costly due to the added capability of switching between AC and DC. However, for welders who need versatility across various materials, the investment in an AC/DC machine is often justified.
4. Control Features: AC/DC TIG welders often come with advanced features like AC balance control, allowing greater customization in the welding process. DC TIG welders, while simpler, offer excellent control over penetration and arc stability, making them effective for ferrous metals.

Conclusion

In summary, DC TIG welding is best suited for ferrous metals, offering precision, stability, and deep penetration. In contrast, AC/DC TIG welding provides versatility, allowing welders to work effectively with both ferrous and non-ferrous metals. For welders who primarily work with steel, a DC TIG machine may suffice. However, those needing to weld materials like aluminum would benefit from the added flexibility of an AC/DC TIG welder. The choice between DC and AC/DC TIG welding ultimately depends on the materials involved and the level of control required for the specific application. For DC Tig Welding, choose the Miller Maxstar 400.
