DISCONTINUED

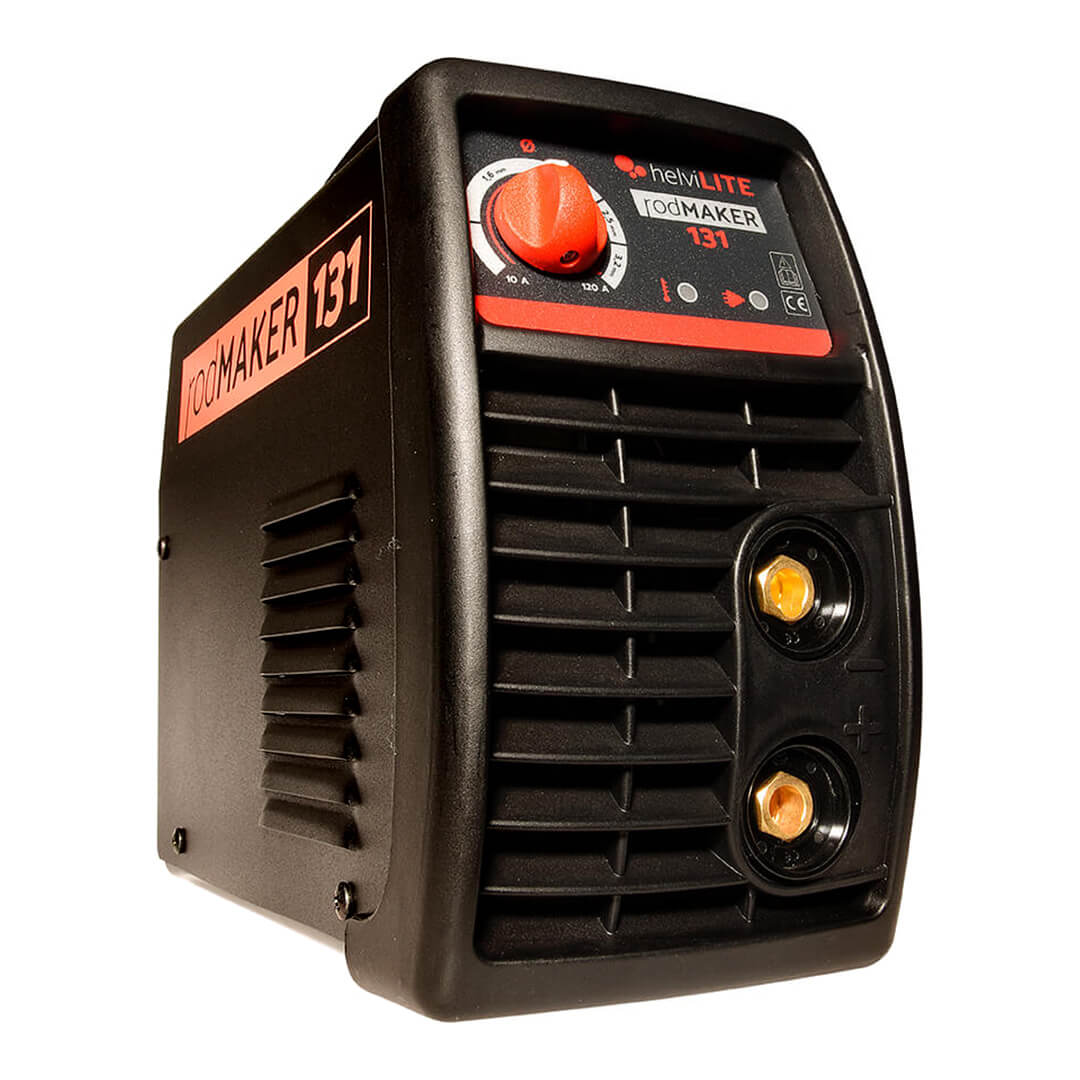

helviLITE rodMAKERÂ 131 Arc Welder
The helviLITE rodMAKER 131 arc welder is a portable DIY stick welding machine designed for those who weld as a hobby or for those who weld to do small non-professional jobs. The helviLITE welding machines are perfect both for those who have never welded and want to start, and for those who already know how to weld.
Portable welding machine with inverter technology for electrode welding .
Adjustment range: 10 to 120 amps.
With rodMAKER 131 you can weld with all commercial electrodes. The ideal diameter of the electrodes is 2.5 mm.
The helviLITE do-it-yourself welding machines are made in Italy and come with a 2 year warranty.
| Supply | (1ph) 230V 50 / 60Hz |
| Power 60% | 2.5 KW |
| Work cycle 40 ° C | 120 A @ 20% – 70 A @ 50% – 55 A @ 100% |
| Work cycle 20 ° C | 120 A @ 30% – 85 A @ 60% – 65 A @ 100% |
| Ø electrode | 1.6 ÷ 3.2 mm |
| Type of electrode | 6013 – 7018 |
| Adjustment range | 10 ÷ 120 A |

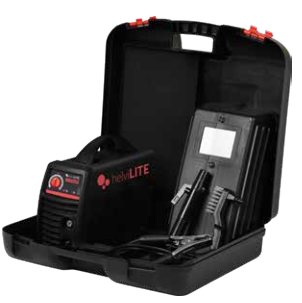

Supplied in a case with the following accessories included:
- Electrode welding cable. Length 2.5 meters. Cable section 10mm 2
- Ground cable. Length 1.6 meters. Cable section 10mm 2
- Plastic mask for safe welding
Why choose rodMAKER 131?
The hot start device facilitates the triggering of the electrodes.
It is for everyone –The arc force device automatically increases the welding current in case of too short arc.
More precision for a truly WOW effect.
The anti-sticking device prevents the electrode from sticking to the piece to be welded.
Maximum security.
In the event of overvoltage and overcurrent, the internal protection systems come into action.
Projects without limits.
You can weld anywhere because you can use rodMAKER 131 with motor generators.
If you are looking for an industrial Helvi stick welder, please see the Helvi Sparc 186 arc welder.
Easy to use welding machines are what helviLITE is all about – please read this article about how easy this machine is to use.
